The AFERIY DC-DC DC060 580W charger is compatible with the following portable power stations:

• P310 (3600W, 3840Wh)
• P280 (2800W, 2048Wh)
• P210 (2400W, 2048Wh)
• P110 (1200W, 960Wh / 1008Wh)
• P010 (800W, 512Wh)

It provides an efficient and stable charging solution for the entire AFERIY power station range that supports a 48V DC input.

Yes, but only with the AFERIY P280 (2800W, 2048Wh).

The P280 has two independent XT90 input ports, allowing simultaneous charging via the AFERIY DC060 DC-DC charger and a solar panel.

Connection method:

• DC060 charger: MC4 cable → Anderson output, then MC4 → XT90 cable to the first XT90 port.
• Solar panel: MC4 → XT90 cable to the second XT90 port.

Note:

• The P280 includes one MC4 → XT90 cable.
• To connect both the DC060 and a solar panel simultaneously, you must purchase an additional MC4 → XT90 cable.

Other AFERIY models have only one solar input port and therefore do not support simultaneous DC060 + solar charging. For those models, you must choose either the DC-DC charger or the solar panel.

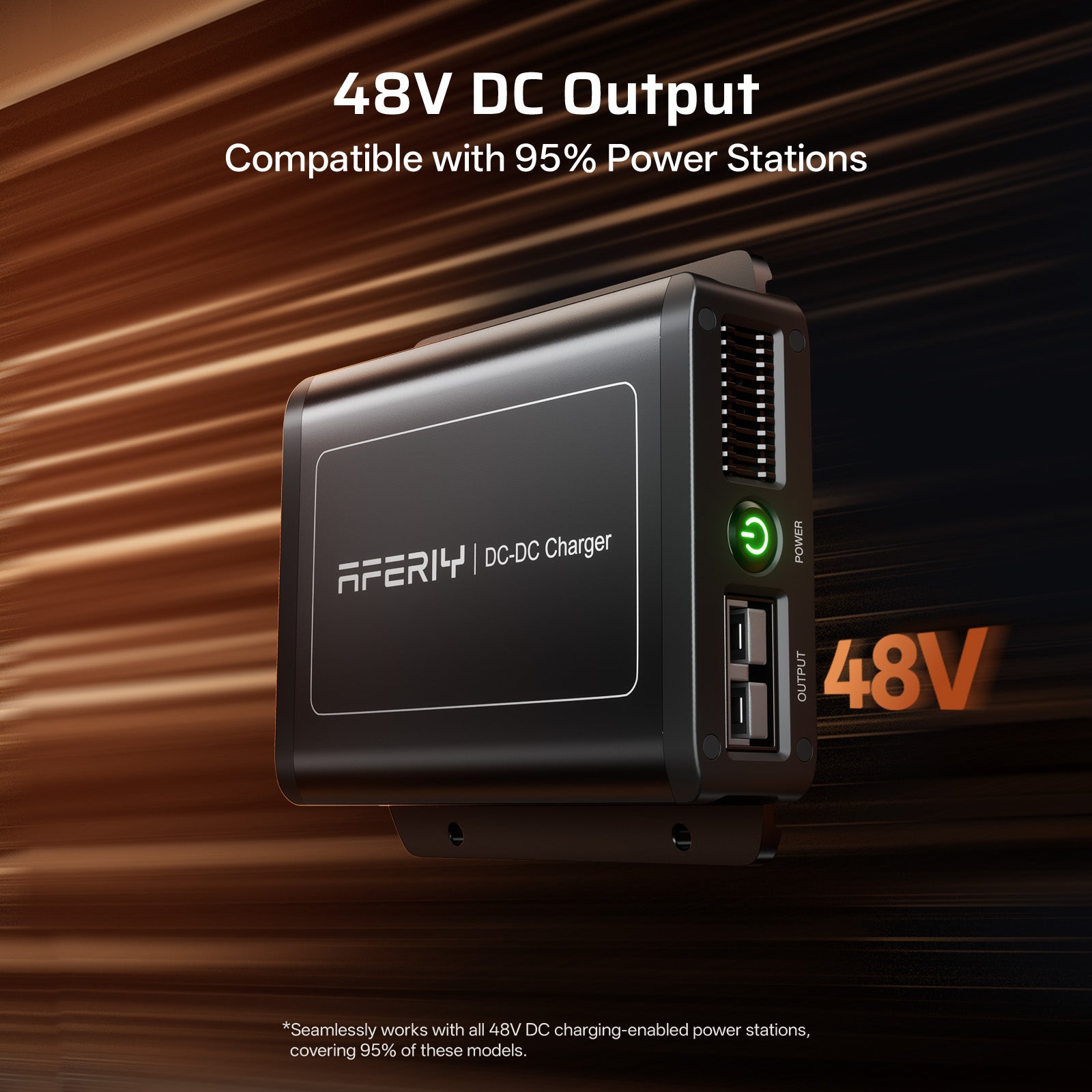

Yes. The AFERIY DC060 DC-DC charger outputs 47V–49V DC, making it compatible with most power stations on the market.

However, we recommend using it only with official AFERIY devices to ensure optimal safety and stable performance.

The AFERIY DC-DC AFERIY DC060 charger is compatible with 12V and 24V vehicle battery systems.

It is suitable for a wide range of vehicles, including RVs, trucks, SUVs, and other vehicles equipped with 12V/24V batteries.

A vehicle cigarette lighter socket (12V/10A) provides only 120W, resulting in very slow charging for power stations.

The AFERIY DC-DC DC060 converts vehicle battery power to deliver up to 580W of stable charging power — up to 6 times faster.

It is ideal for long trips, camping, van life, or outdoor work, as it significantly reduces charging time.

Advantages of the AFERIY DC-DC battery charger:

• Fast charging: Up to 6 times faster than a standard cigarette lighter socket.
• Smart voltage/current compatibility: Automatically adjusts for stable power delivery.
• Multiple protection features: Protects against short circuits, reverse polarity, low voltage, and overheating.
• Interface compatibility: Supports various connectors to avoid compatibility issues.

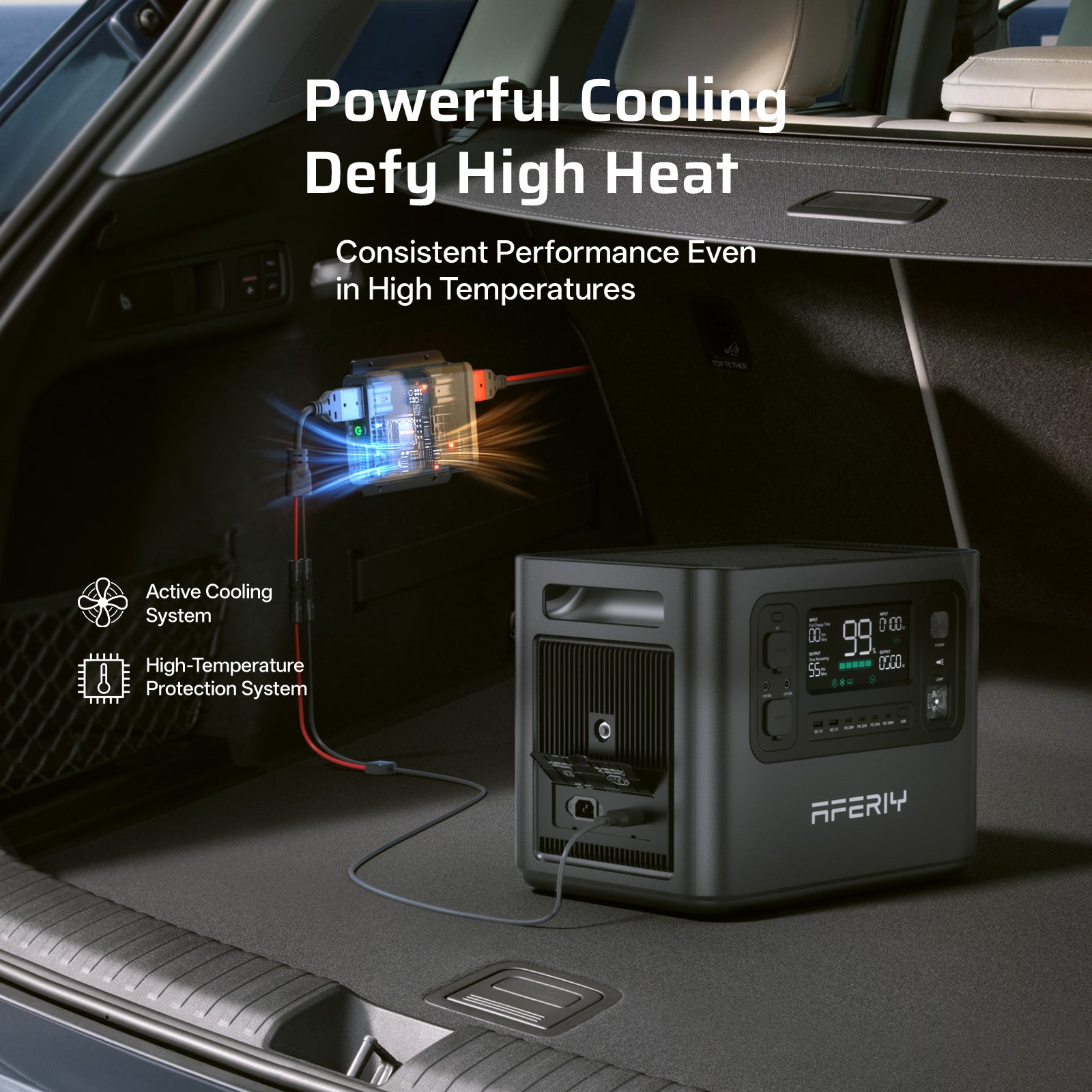

• Wide temperature range: Operates from -20°C to 60°C.
• Smart monitoring: Stops charging when the engine is off and reduces power if the vehicle battery is low.

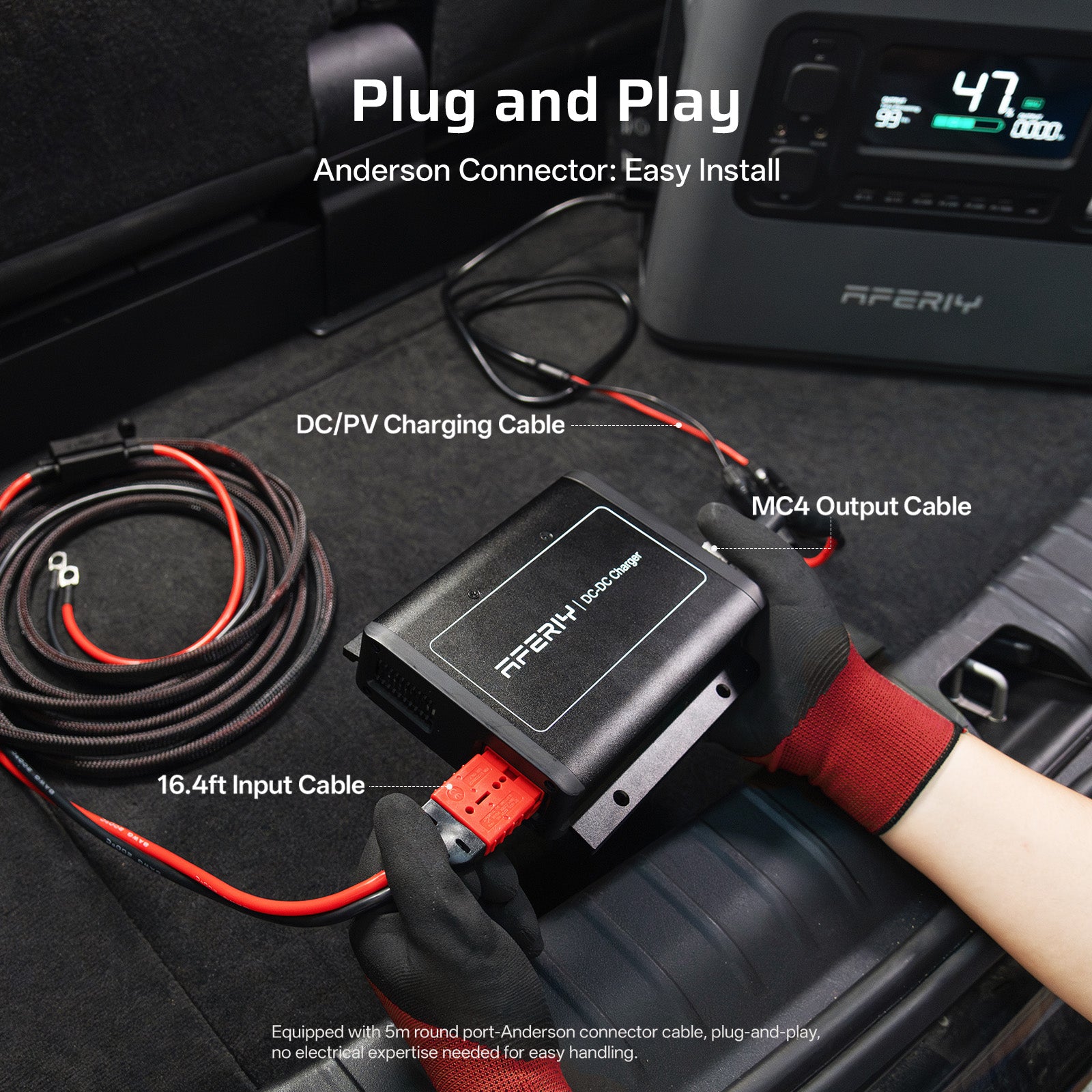

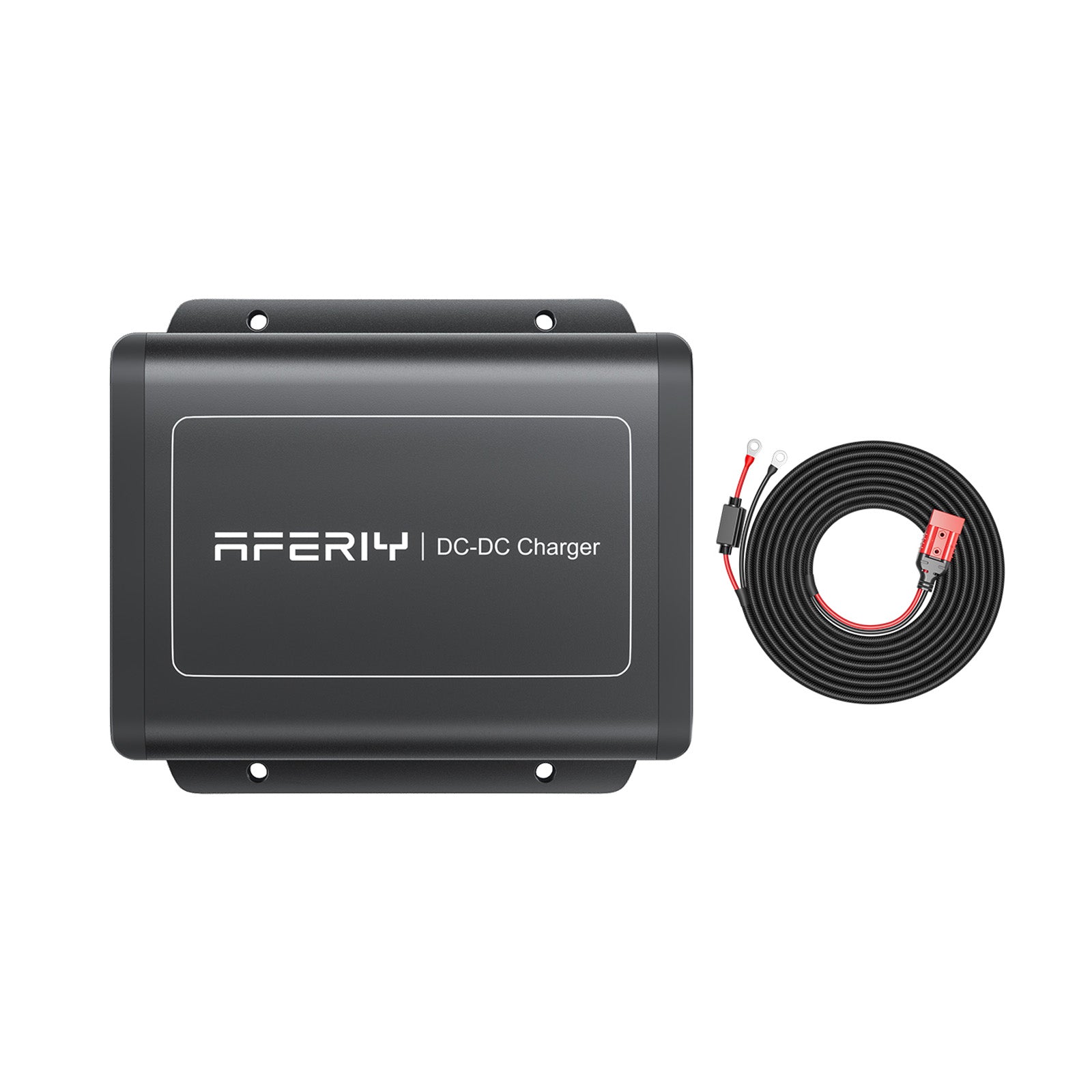

Accessories included with the AFERIY DC060 580W DC-DC Battery Charger:

• Round-terminal input cable to Anderson (5 m)
• Anderson to MC4 output cable (0.3 m)
• Expansion screws × 4
• Screwdriver × 1

Do you need to buy an extra cable?

No. No additional purchase is required to connect the AFERIY DC060 to the AFERIY portable power stations (P310, P280, P210, P110, P010). Each model comes with its own MC4 → XT90/XT60 solar input cable. Simply connect it to the MC4 → Anderson cable included with the DC060 to use it immediately.

Important note: If you are using the P280 and want to perform simultaneous DC060 + solar charging, you will need an extra MC4 → XT90 cable. The other models do not support simultaneous DC060 + solar charging.
