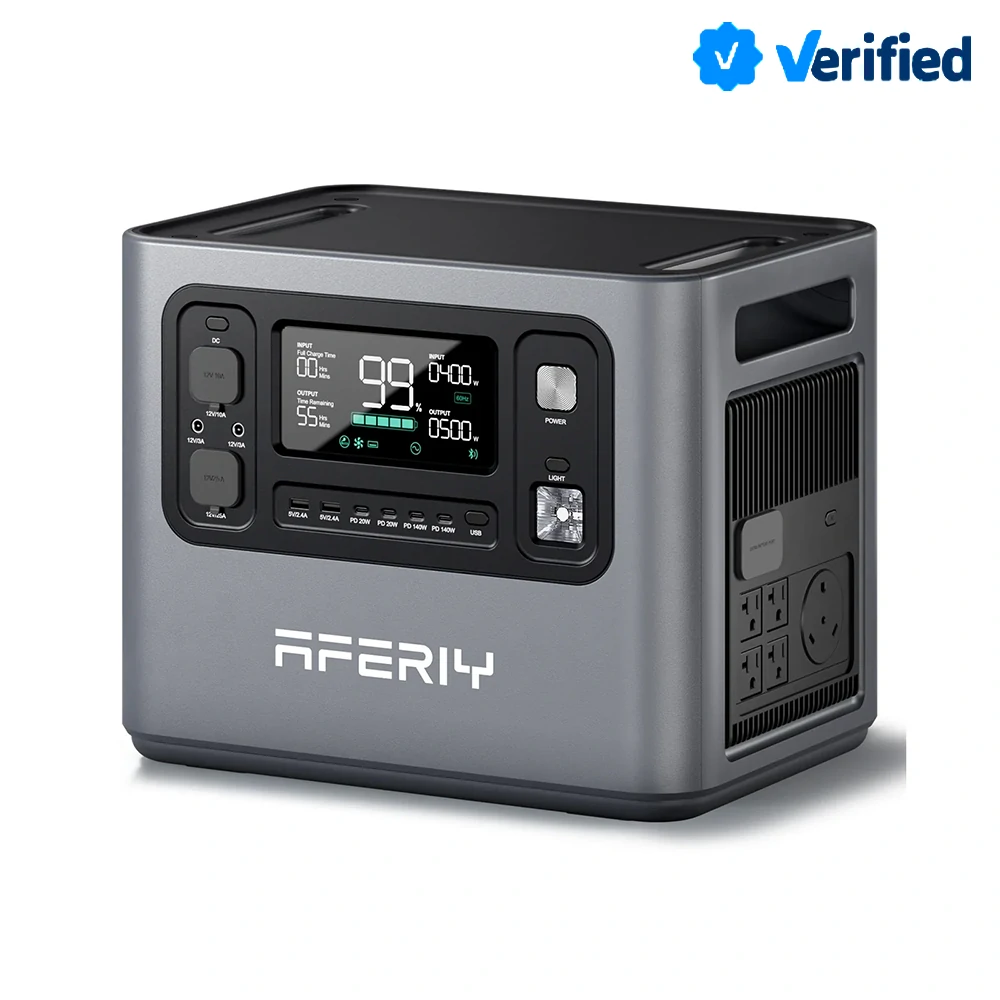

AFERIY Haven2400 P210 Portable Power Station 2400W 2048Wh

Regarding the battery power station’s capacity. The nominal capacity of the P210 is 2048Wh. In practice, the output capacity is generally lower than the nominal capacity, for the following reasons:

• Battery lifespan protection: The battery never completely discharges (even when the power station indicates 0%, about 5% of the energy remains in the battery pack) to extend the station's lifespan;
• Self-consumption: When the AC switch on the power station is turned on, the device consumes about 20-25W per hour. So, the longer the device is used, the higher the station’s own energy consumption becomes;
• Conversion losses: The power station’s battery pack converts DC to AC through an inverter, with a conversion efficiency of about 90%. Additionally, there are energy losses across various circuits.

These factors result in a real output capacity that is lower than the nominal capacity.

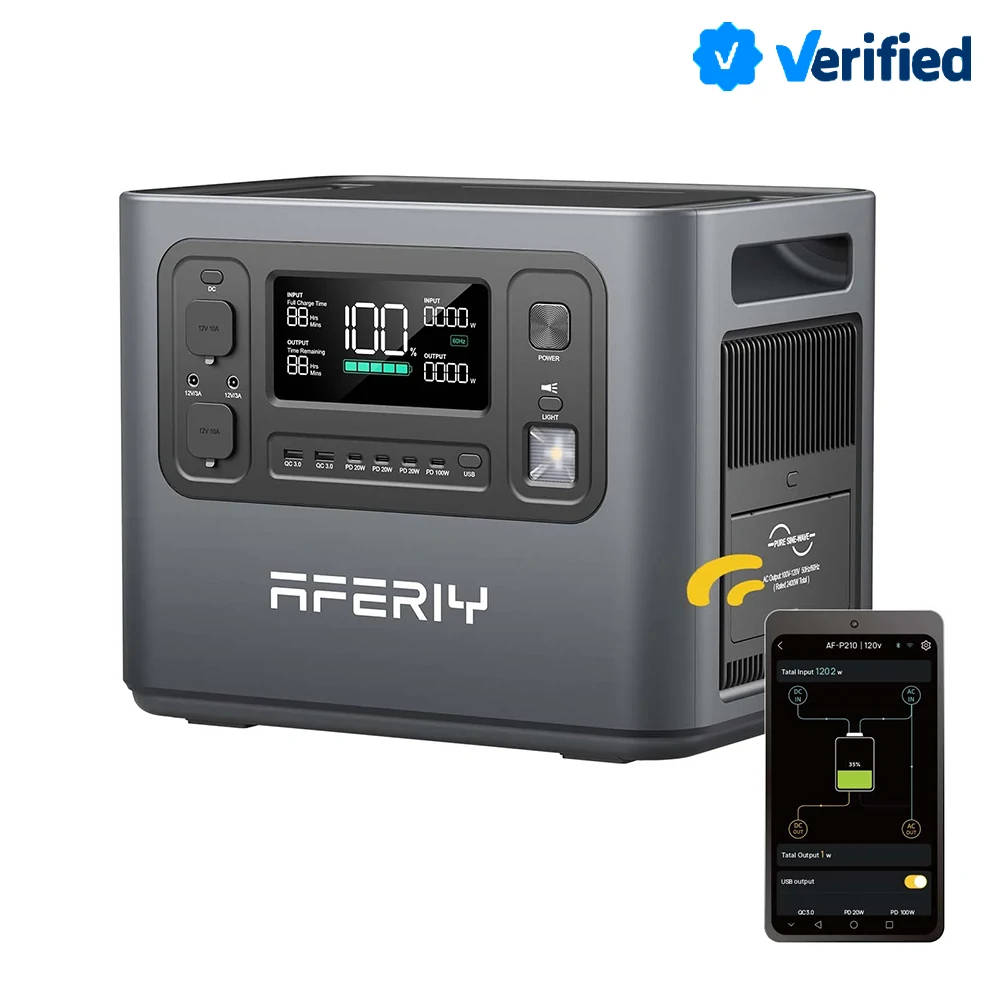

The app is called BrightEMS.

• For Android phones, you can download and install it from Google Play.
• For iOS phones, you can download and install it from the Apple Store.

Once installation is complete, select your region, then create an account and log in. No email or phone verification code is required.

After you have registered and logged in, go to the device addition section. The app will automatically search for available devices nearby (please ensure that Bluetooth is enabled). If you wish to search for a specific model, click on the corresponding model in the "Add a device manually" section. Once the device is detected, click on it to proceed with pairing. After pairing, you will access the network configuration, which only supports 2.4 GHz WiFi networks.

Yes, please note that you must activate the corresponding output switch on the portable power station.

When the portable power station is connected between an AC wall outlet and appliances, and both the power switch and the AC switch on the portable power station are in the ON position, the product switches to UPS mode (uninterruptible power supply).

The cooling fan will not run all the time; it only starts automatically when the internal temperature of the power station exceeds 60 degrees.

It is quiet during normal operation, and when the cooling fan is activated, the noise level is below 60 dB.

• Without turning on the AC switch, if the portable power bank is turned on without any other operation, the standby energy consumption will automatically be set to no output if it is below 8 W, and the unit will automatically shut down after 5 minutes.
• With the AC switch turned on, if the portable power bank is turned on without any other operation, the standby energy consumption will automatically be set to no output if it is between 15 W and 25 W, and the unit will automatically shut down after 8 hours.

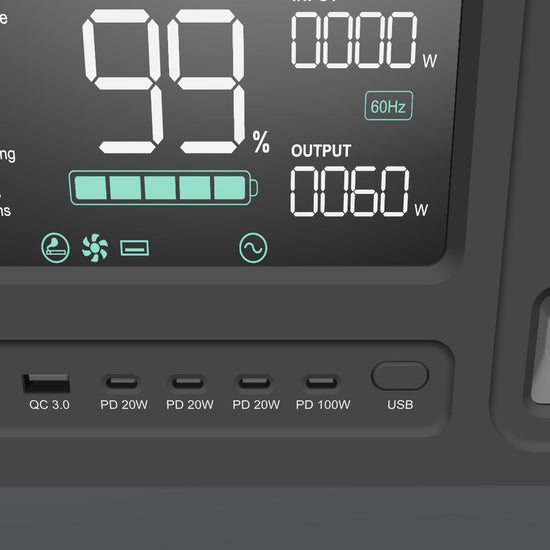

The AFERIY P210 2400W 2048Wh portable power generator is equipped with 16 output ports, allowing you to power 16 devices simultaneously, including:

• 6 AC output ports (100V-120V, 2400W)
• 2 USB-A output ports (QC3.0 18W)
• 3 USB-C output ports (20W)
• 1 USB-C output port (PD 100W)
• 2 DC output ports (12V, 3A)
• 1 Cigarette Lighter output port (12V, 10A)
• 1 XT60 output port

It depends on the combination of power, voltage, and current of the solar panels you choose. You can connect the solar panels in series or in parallel.

Please note that the portable power station AFERIY AF-P210 supports a maximum solar input of 500W, 50V, 20A. As long as the solar panels meet these specifications, most will be compatible.

If you use AFERIY solar panels, you can choose one of the following combinations for charging:

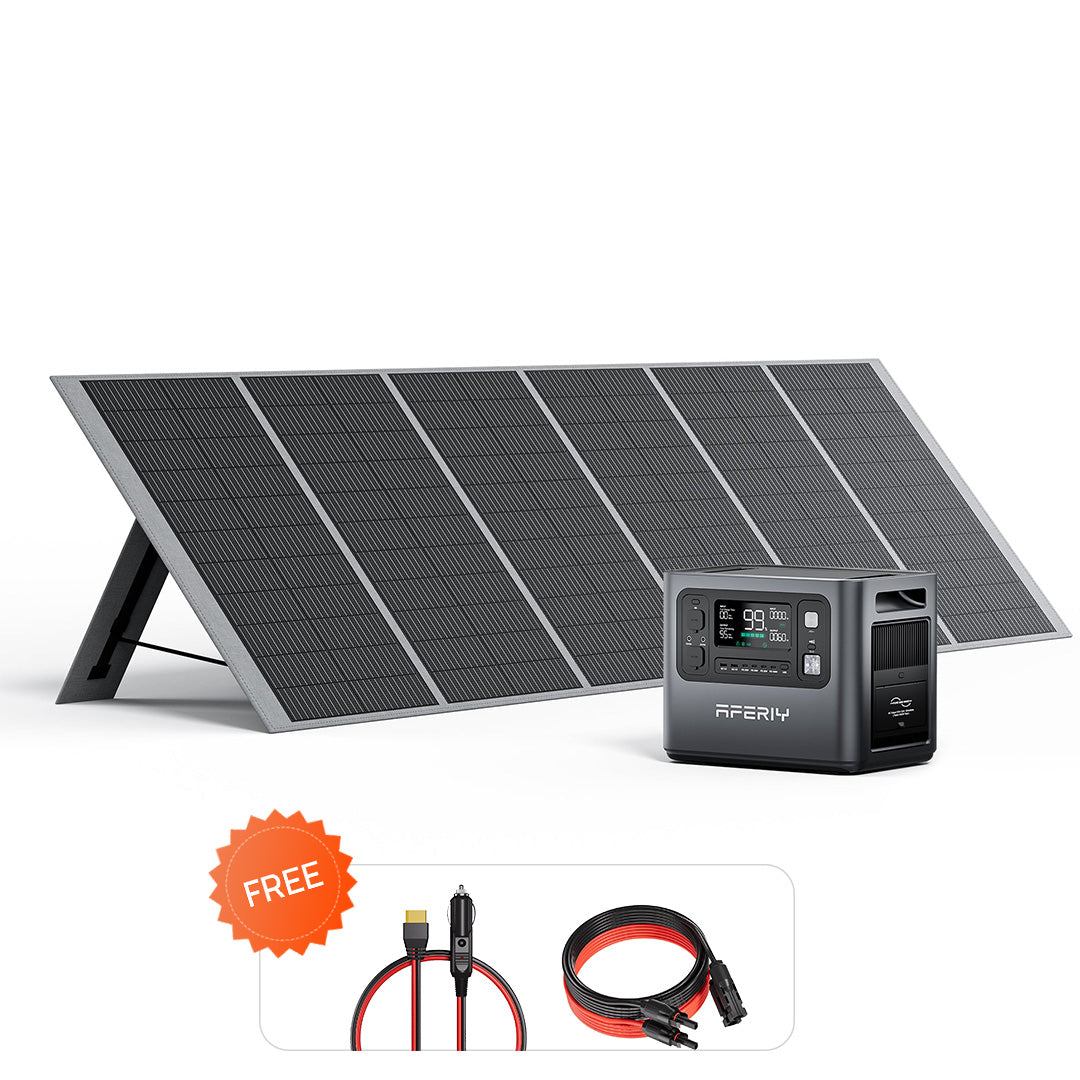

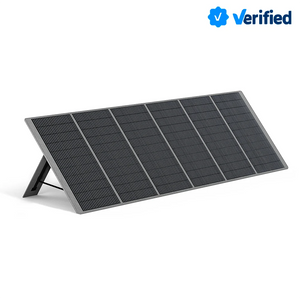

• 1 AF-S400A1 panel (400W);

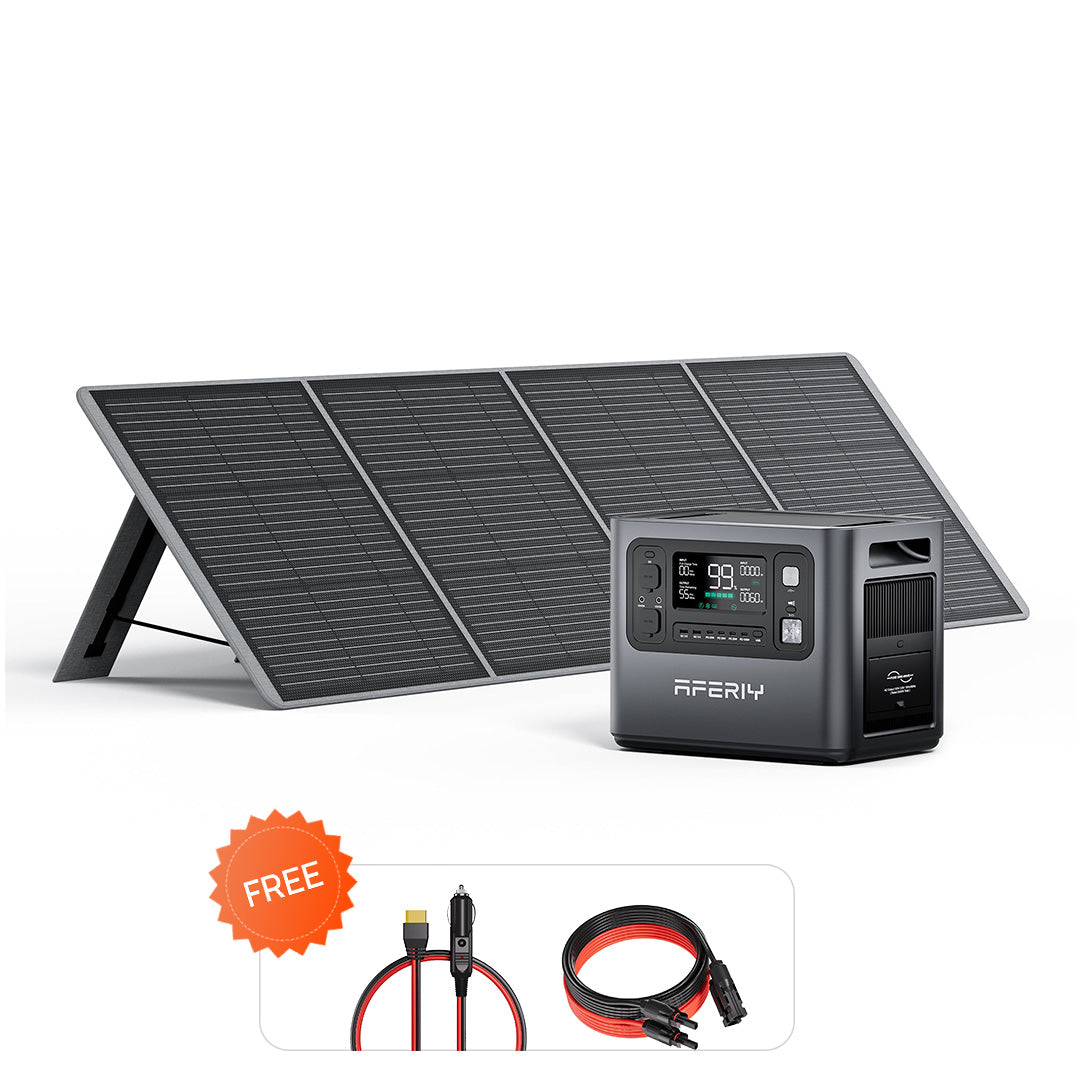

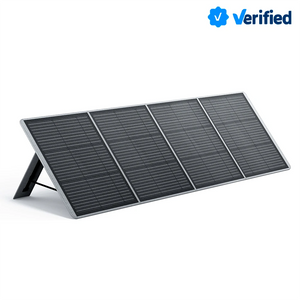

• 1 AF-S200A1 panel (200W);
• 2 AF-S200A1 panels in series (200W*2);
• 2 SG120 panels in series (120W*2);
• 4 SG120 panels: 2 in series, 2 in parallel (120W*4);

By choosing the right combination of solar panels, you can optimize charging efficiency.

Yes, the portable power station AFERIY can be permanently connected to a solar panel. However, at sunrise or sunset, the solar panel may emit a ticking sound (due to the internal installation of a relay in the portable power station, which acts as a protective circuit). This noise is normal and will not damage the power station or the solar panel. Additionally, please note that the portable power bank will experience a slight energy consumption when connected to the solar panel without any power input.

Therefore, it is recommended to only connect the solar panel during the day and disconnect it when there is no charging effect at night.

Yes, only one car charging cable (ACC, XT90 connector) is needed. Please note that the car charging cable can carry a current of over 10 A.

No. In case of malfunction of the internal battery, please contact AFERIY customer service.

No.

If the battery is to remain unused for an extended period (over 3 months), it should be kept at 60-80% of its nominal capacity (it is recommended to check and charge it every 3 months). Store it in a dry, cool place. Avoid contact with corrosive substances, and keep it away from fire and heat sources.

Many motors or compressors generate an inrush current at startup that is much higher than their nominal power. This startup current demand can be several times higher than the nominal power, generally between 2 and 7 times higher. This can exceed the capacity of the power supply, thereby preventing the device from starting. For example, equipment such as water pumps, air conditioner compressors, and refrigerator compressors.

AC output voltage standards vary by country. Please check your device's AC voltage before use. Specific method:

• If you purchased before December 2023, quickly press the AC button 10 times to switch the AC output voltage between 220V and 240V.
• If you purchased after this date, there is no need to manually change the voltage, as the device automatically adapts to an AC output voltage of 220-240V. The specific value is determined by the input voltage or the voltage demand of the load.

If you purchased before December 2023, hold the AC button for 3 seconds to switch between 50Hz and 60Hz. If you purchased after this date, there is no need to manually change the frequency, as the device automatically adapts to the input/output frequency.

• If you purchased before December 2023, it is not possible to adjust the AC input power.
• If you purchased after this date, the AC input power can vary over time. Note: the total charging power must be less than 2400W. If you need to change the input power, proceed as follows: press the AC button for 10 seconds to enter power switching mode. The screen will display the AC input power adjustment interface, where you can configure the AC input power; after staying on the current AC input power adjustment interface for 5 seconds, the system will automatically save the setting and return to the main interface. The AC input power can be adjusted to 5 levels: 300W/500W/700W/900W/1100W.
