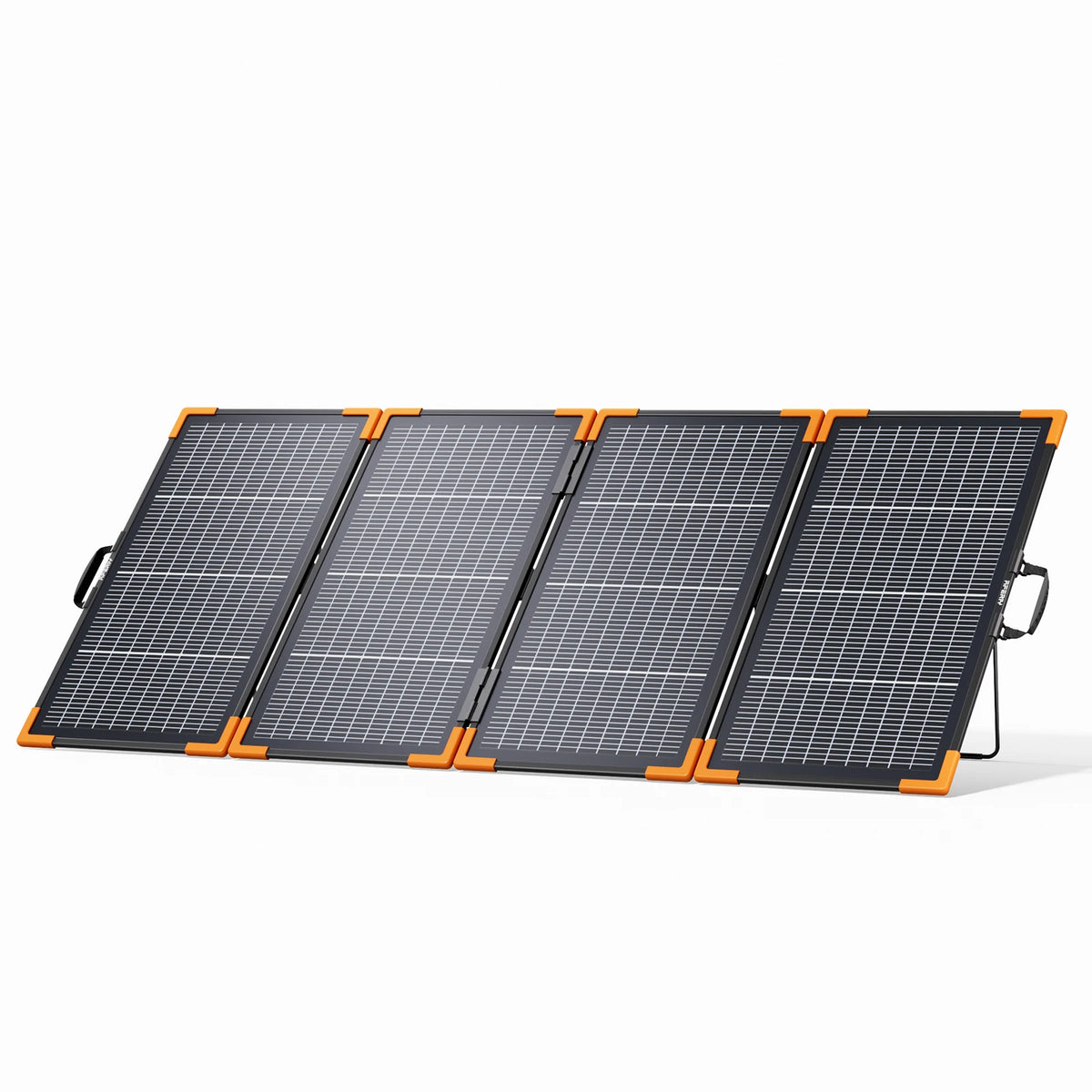

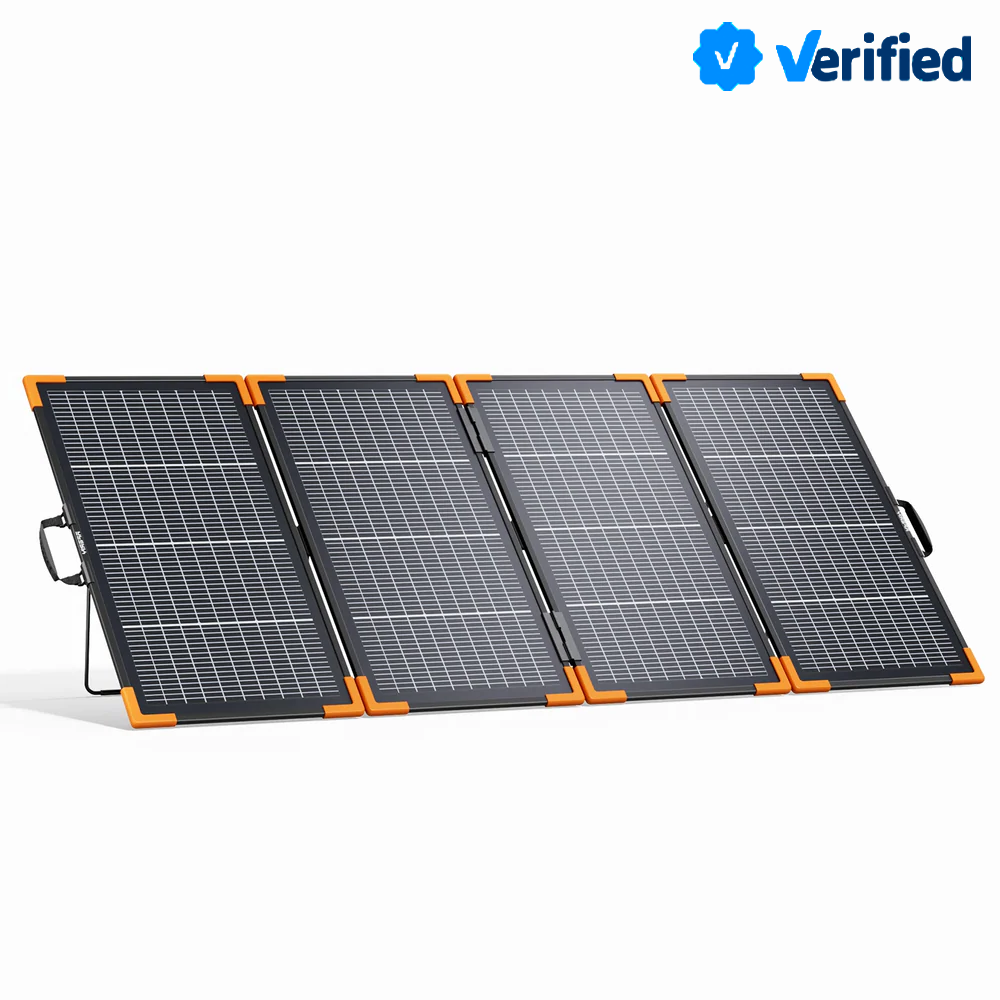

AFERIY ‎AF-SA200 200W Portable Solar Panel (Upgraded Version)

The AFERIY AF-SA200 is rated at 200W, but actual solar output may not always reach the full rated value during daily use. This is normal in the solar panel industry.

The 200W rated power is measured under Standard Test Conditions (STC), which means 1000W/m² sunlight intensity, 25℃ temperature, and an ideal vertical sun angle.

In real use, sunlight intensity, installation angle, temperature, weather, shadows, and cable loss can all affect the actual output. Under good sunlight conditions, the actual output of a 200W solar panel is usually around 75%-85% of the rated power.

Please make sure the solar panel output voltage, current, and power are within the supported solar input range of your portable power station before connecting.

• Overcurrent: If the solar panel current exceeds the power station’s maximum input current, the power station may limit the input current.
• Overload: If the solar panel power exceeds the maximum solar input power, the power station may limit the input power.
• Overvoltage: If the solar panel voltage exceeds the maximum solar input voltage of the power station, the overvoltage protection may be triggered, and the power station may stop charging.

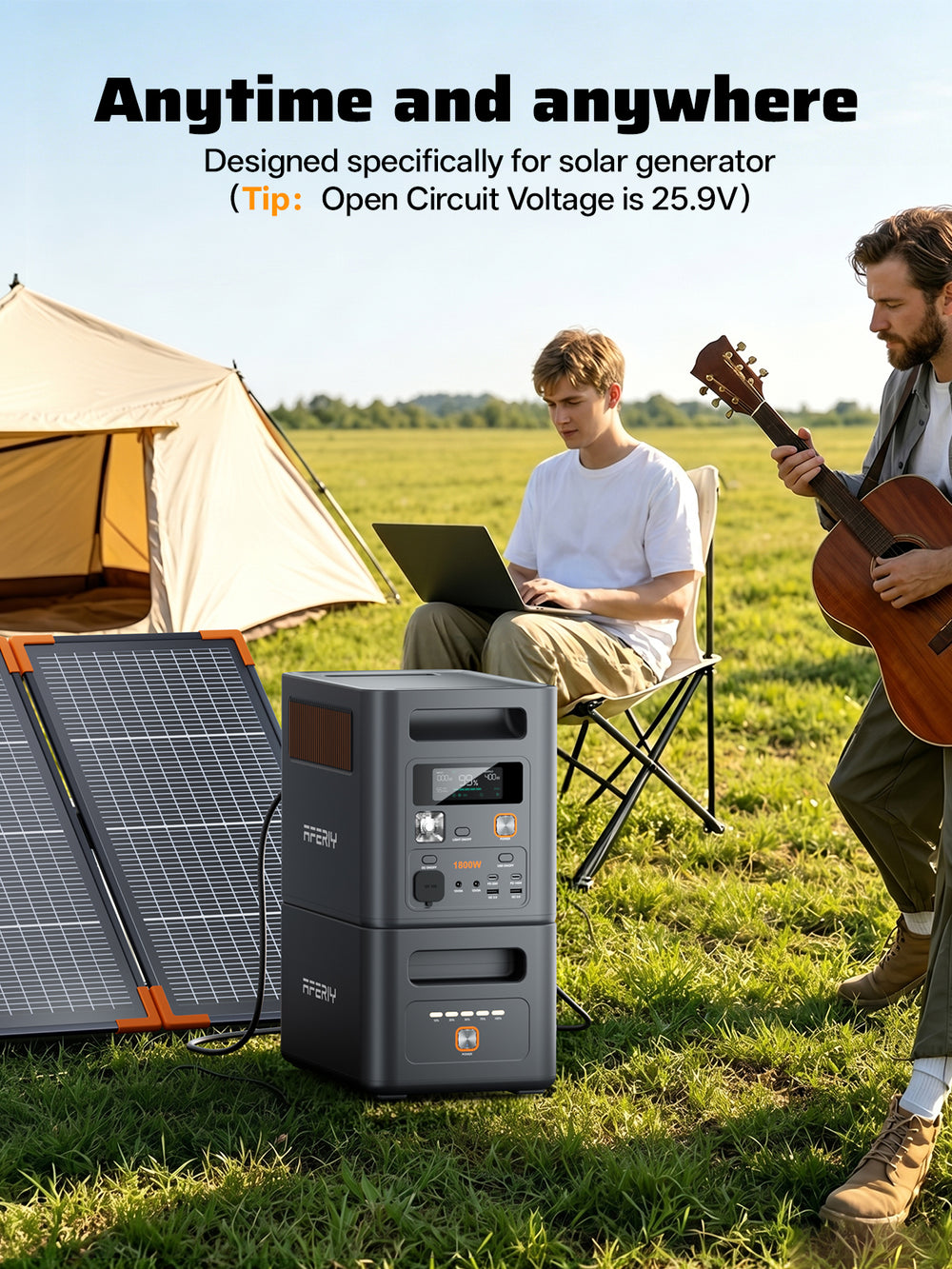

The AF-SA200 has a 21.6V working voltage and 25.92V open-circuit voltage. Please confirm your power station’s solar input specifications before use.

Yes, but it is not recommended to keep the solar panel connected when there is no sunlight or when the solar input is unstable.

When the solar panel is connected in weak sunlight, such as at night, sunrise, sunset, or in cloudy conditions, the power station may repeatedly start and stop charging. This may cause slight power consumption or relay sounds from the power station.

For better performance, we recommend disconnecting the solar charging cable when there is no sunlight and reconnecting it when sunlight is strong and stable.

When sunlight becomes weak, the solar input may become unstable. This can cause the power station to repeatedly start and stop solar charging.

The AFERIY portable power station is equipped with internal protection components, including a relay. When the charging input repeatedly changes, the relay may operate repeatedly and create a clicking or beeping sound.

This is usually caused by insufficient sunlight. We recommend disconnecting the solar panel at night or when sunlight is too weak, and charging again when sunlight is stable.

It may consume a small amount of power when the power station is connected to the solar panel without stable solar input.

To reduce unnecessary power consumption, we recommend disconnecting the solar panel when there is no sunlight. If the power station is not in use, please also turn off the AC output and other output switches.

Yes, the power station can usually resume solar charging automatically after sunlight becomes strong enough the next day.

However, during sunrise or sunset, weak sunlight may cause repeated charging starts and stops. For more stable charging, we recommend connecting the AF-SA200 when sunlight is sufficient and stable.

We do not recommend connecting solar panels with different voltages, currents, or specifications in series or parallel.

When using series or parallel connection, please use solar panels of the same model and same specifications. This helps avoid charging efficiency loss, unstable input, or possible damage to the power station.

For the AF-SA200, please always make sure the combined voltage and current remain within the supported solar input range of your portable power station.

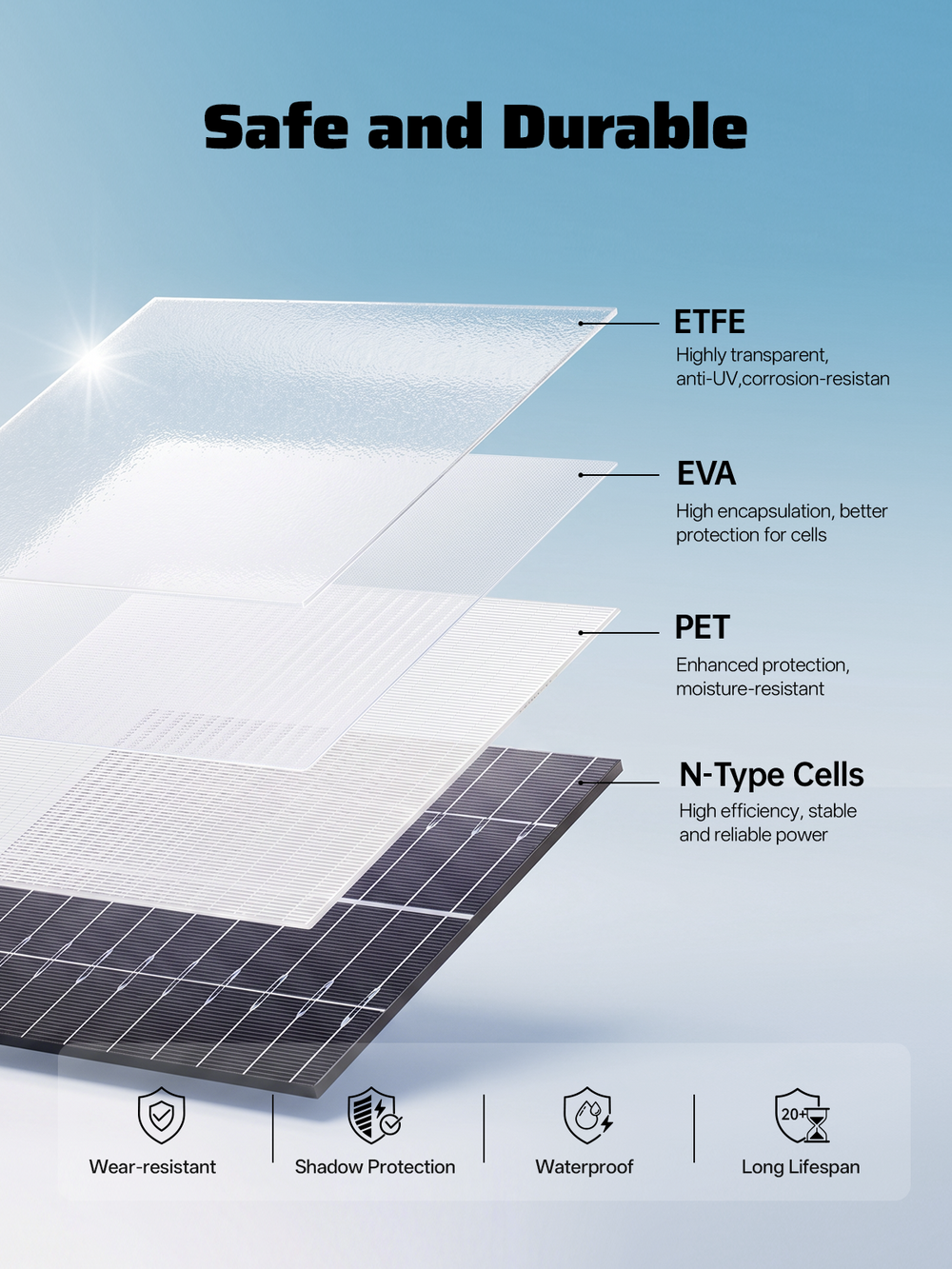

Yes. The AFERIY AF-SA200 uses durable ETFE coating, an upgraded aluminum-frame foldable design, and IP67 protection, making it suitable for outdoor solar charging.

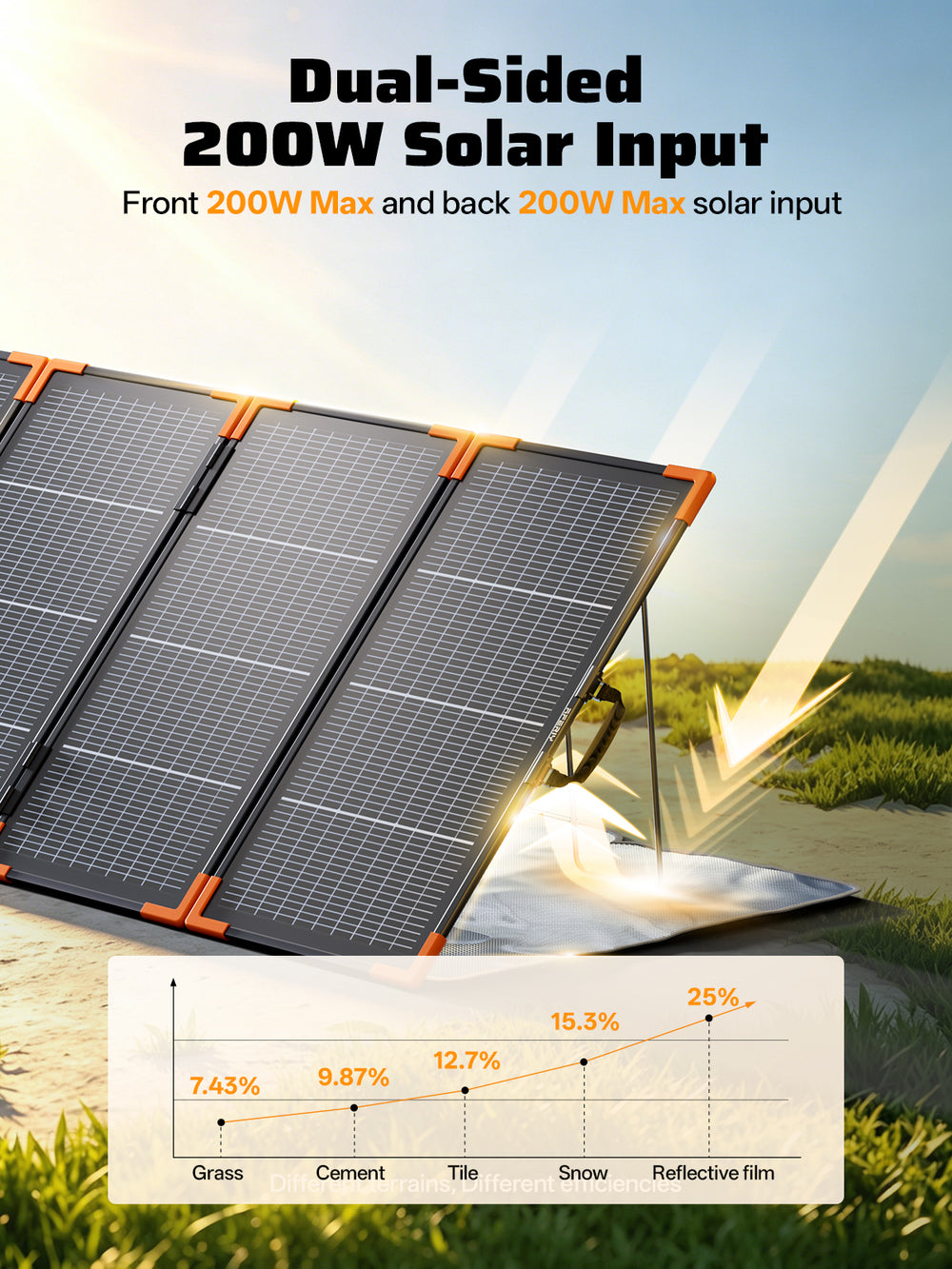

The AF-SA200 also supports bifacial power generation. When used with the reflective storage bag, the rear side of the panel can use reflected light to help improve overall power generation efficiency.

To extend the lifespan of the solar panel, we recommend avoiding prolonged exposure to heavy rain, standing water, or extreme weather conditions when possible.

Yes. The AF-SA200 is also a foldable solar panel, but it uses an upgraded aluminum-frame foldable design for better durability, stability, heat dissipation, and long-term outdoor use.

Compared with the AF-S200A1, the AF-SA200 is stronger and more durable, but it is also heavier. If you need a lighter solar panel mainly for camping, travel, and easy storage, the AF-S200A1 may be more suitable. If you need higher efficiency, bifacial power generation, stronger protection, and better long-term reliability, the AF-SA200 is the better choice.

Yes, the AFERIY AF-SA200 can work with many portable power stations on the market, as long as the power station supports the solar panel’s voltage, current, power, and connector type.

The AF-SA200 specifications include 200W rated power, 21.6V working voltage, 9.72A working current, and 25.92V open-circuit voltage. Please check your power station’s solar input range before connecting.

For AFERIY portable power stations, the AF-SA200 is suitable for compatible models within the supported solar input range. If you are not sure about compatibility, please contact AFERIY support before use.
